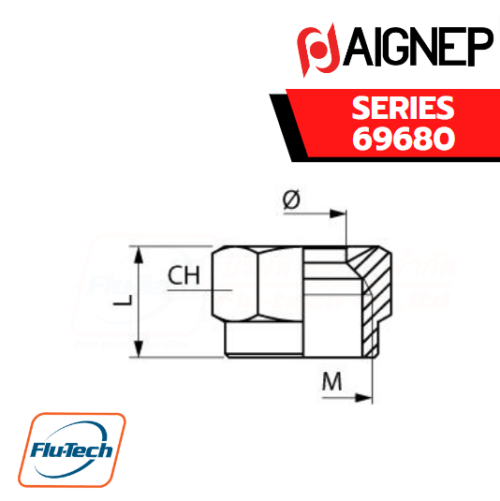

AIGNEP – SERIES 69680 | NUT

AIGNEP – SERIES 69680 Stainless steel AISI 316L compression fittings (1.4404)

Perfect solution for multiple application and connection, it’s possible to connect with several rigid metallic tube in complete safety (stainless steel, brass, aluminum, copper) but also plastic made tubes like polyurethane, polyamide, Teflon.

Main advantages

• Complete range
• For all corrosive fluids and environment
• Completely made in AISI 316L
• Mechanical strength
• Sealing is guaranteed on different type of tube
• No sealing elements (elastomeric)
• From ø 4 mm to ø 12 mm

Applications

• Food farming industry
• Chemical, Petrochemical,  Pharmaceutical industries
• Medical and Life & Science
• Inkjet, Printing
• Pneumatic and Fluid Automation
• Food & Beverages
• Inert gases
• Heavy duty Pneumatic Automation & tools
• Automotive

Component Parts and Materials

1. Stainless Steel AISI 316L (1.4404) Nut
2. Stainless Steel AISI 316L (1.4404) Olive
3. Stainless Steel AISI 316L (1.4404) Body
4. Stainless Steel AISI 304L (EN 1.4301) Internal support

Connection Tubes

Tubes made in Stainless Steel, copper, steel, iron, aluminium, brass.
With an inside support bush (art. 69770), can be used also for plastic material such as PA, FEP, PTFE, etc.

Threads

Tapered gas in conformity with ISO7.1, BS 21, DIN 2999.
Parallel gas in conformity with ISO 228 Class A.
Metric in conformity with ISO R/262.
