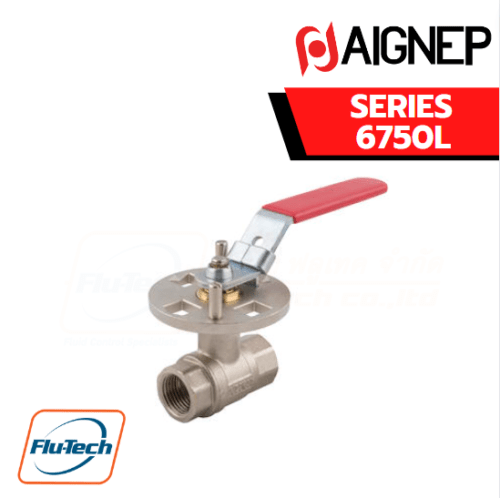

AIGNEP – SERIES 6750L BALL VALVES FEMALE LOCKABLE

AIGNEP – SERIES 6750L miniature ballvalves have been created and engineered by Aignep in the 90’s. The supercompact dimensions and the excellent performance respond to the growing demand of miniaturization.

Many available version: 2 or 3-ways, with exhaust, push-in, compression, etc.

25 different configurations to drive multiple fluids. On demand FKM, EPDMe HNBR.

To complete the range traditional ball valves.

DOWNLOAD CATALOG  (ดาวน์โหลดแคตตาล็อก)

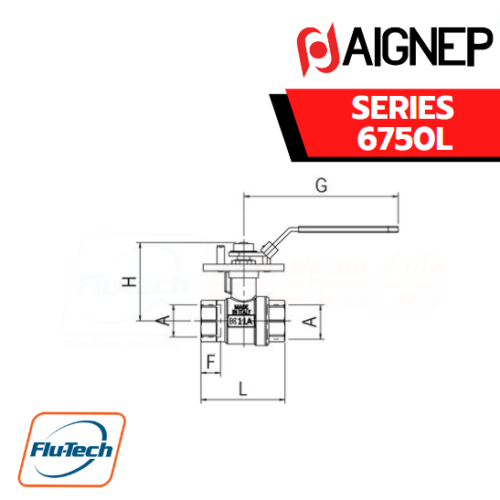

  AIGNEP – SERIES 6750L BALL VALVES FEMALE LOCKABLE

Main advantages

• 2-3 ways with exhaust
• Theads 1/8 to 3/4 –  BSPP, BSPT, NPT
• Bulkhead
• Multiple fluids
• Supercompact dimension
• Coloured plates for Identification
• Silicon Free

Applications

• Compressed Air, Tools
• Pneumatic Automation
• Fluidtechnology
• Food & Beverage
• Life & Sciences
• Inert Gases, Vacuum
• Plumbing

Component Parts and Materials

1. Chrome Nickel-plated Brass Body
2. Brass Olive (if requested PTFE)
3. Chrome Nickel-plated Brass Nut
4. PTFE Seats
5. NBR Seal O-RING (FKM-EPDM-HNBR if required) 6 Chrome Nickel-plated BrasAIGNEP – SERIES 6450 – TUBE – TUBE VALVE-CODEs Spindle
6. PA66 Glass reinforced Handle
7. Acetalic resin Plate
8. Steel Screw
9. Chrome Nickel-plated Brass Ball
10. NBR Seal O-RING*
11. Brass Fitting

Threads

Gas in conformity with ISO7.1, BS 21, DIN 2999.

Parallel gas in conformity with ISO 228 Class A.
