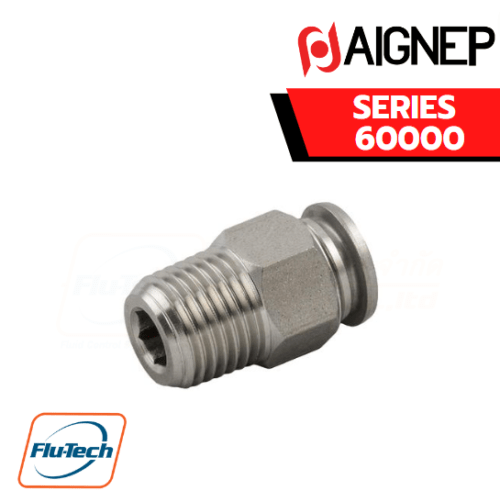

AIGNEP – SERIES 60000 STRAIGHT MALE ADAPTOR (TAPER)

AIGNEP – SERIES 60000 is fully made of stainless steel AISI 316L. It has been developed to drive corrosive fluids or to be used in aggressive environments. It is ideal for direct contact with food fluids.
This line can be used also in salty environment
and on machines that need frequent washing with aggressive detergents.
Serie certified NSF 169 and conformed to NSF 61 & NSF 372 standards.

DOWNLOAD CATALOG  (ดาวน์โหลดแคตตาล็อก)

 AIGNEP – SERIES 60000 STRAIGHT MALE ADAPTOR (TAPER)

Main advantages

• Quick connection and disconnection

• Full Flow and Vacuum resistant  tank to special shaped seals

• 3 threads available, BSPP, BSPT (universal short) & Metric

• Full stainless steel  AISI 316L

• Food&Beverage compatible

• Silicon Free

Applications

• Automation with Washing

• Farming, Mining

• Chemical, Petrolchemical, Pharmaceutical

• Medical, Life&Sciences

• Vacuum

Componet Parts and Materials

1. AISI 316 L Steel Body

2. AISI 316 L Steel Collet

3. AISI 316 L Steel Capsule

4. AISI 316 L Steel Clamping washer

5. PPSU Safety ring

6. Food FKM molded seal

7. Food FKM Thread packing

8. Base Threaded AISI 316 L Steel

9. Seeger

10. Food FKM molded seal

Connection Tubes

Tube in general:
PA6, PA11, PA12, Polyethylene, *Polyurethane, PTFE, FEP.
*For Polyurethane hoses it is required a minimum hardness of 98 shore.
