MECAIR

MECAIR MT 48 OUTPUT SEQUENTIAL TIMER

MECAIR BUS SYSTEM MSC OUTPUT DEMAND CONTROLLER

The economist model"MCS" uses advanced microprocessor technology, expressely designed to control the interval and the pulse time of diaphragm valves using the DP and focusing on reverse pulse-jet systems with pneumatic cleaning procedures. All the technical characteristics satisfy the "CE" Directives which relate to isolation and low voltage power. The European Regulation 89/336 EEC and 93/68 EEC

The economist model"MCS" uses advanced microprocessor technology, expressely designed to control the interval and the pulse time of diaphragm valves using the DP and focusing on reverse pulse-jet systems with pneumatic cleaning procedures. All the technical characteristics satisfy the "CE" Directives which relate to isolation and low voltage power. The European Regulation 89/336 EEC and 93/68 EEC

The 200 SERIES in stainless steel is a range of diaphragm valves suitable for dust collector applications, in particular for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters. The 200 Series valve has the inlet port at 90° to the outlet port. The range includes two models, which comprises a 1″ valve and a 1½″ size valve. Both models have a single diaphragm.

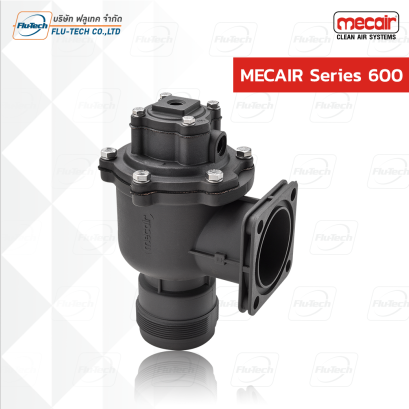

MECAIR Series 600 : FLANGED WITH INCREASED FLOW RATES. The 600 Series is a range of diaphragm solenoid valves for the cleaning of dust collector filters with compressed air.

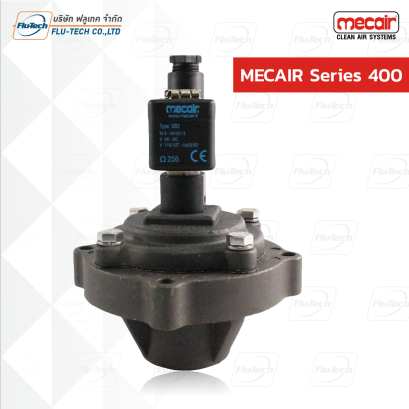

MECAIR Series 400 : “FULL IMMERSION” FIXED TO THE TANK

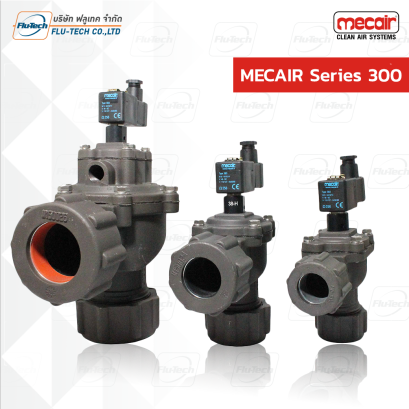

MECAIR Series 300 : QUICK FITTING : 3/4”, 1”, 11/2”. MECAIR Series 300 these valve allow a very quick connection, by fitting directly to non-threaded pipes. These valves are available in three models: 3/4”, 1”, 11/2”.

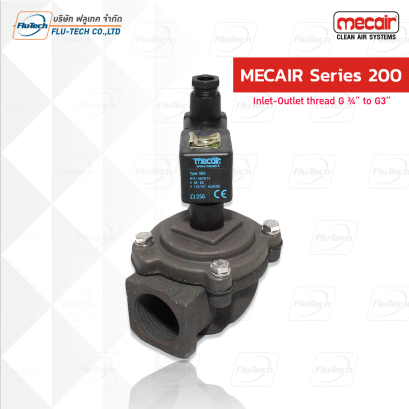

MECAIR Diaphragm Valve Series 200 : Inlet-Outlet thread G ¾” to G3” The range of 200 Series comprises 7 models, from 3/4” to 3”,all with threaded female gas connections. The 11/2” , 2”, 21/2” and 3” are all double diaphragm valves.
